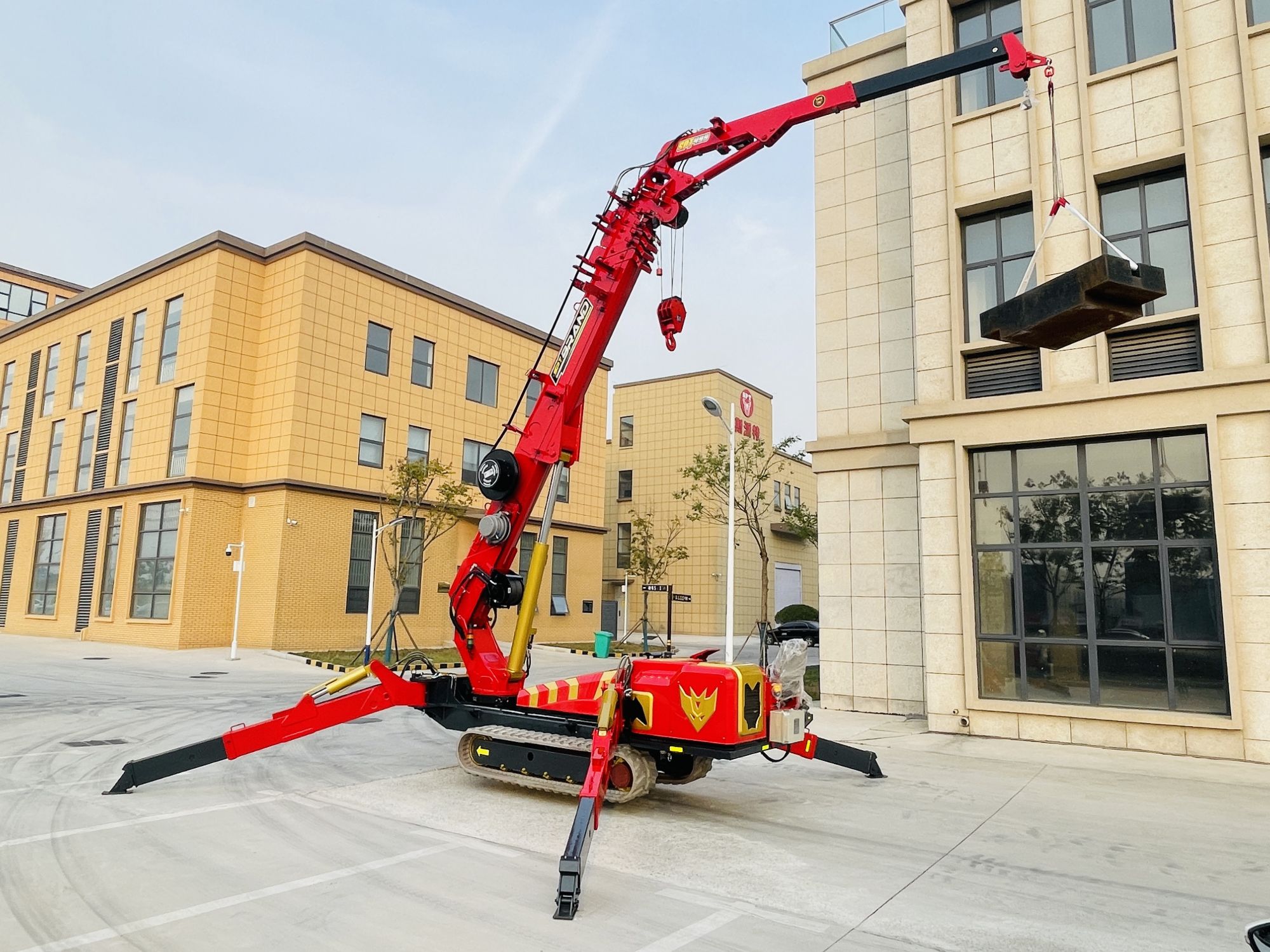

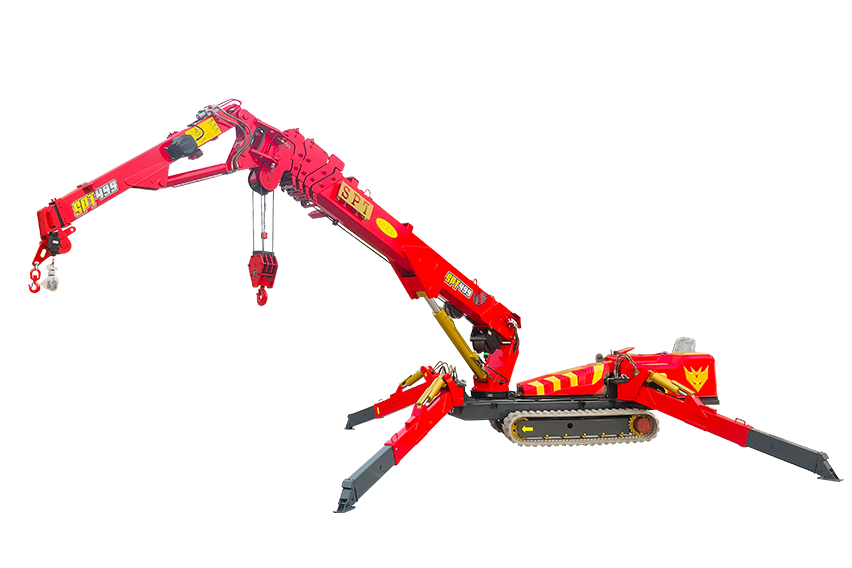

SPT499 with hydraulic jib

Spider Crane

Features
Max Loading Capacity
5.0t×3.0m
Working radius
20.5m
Ground lifting height
22.0m
12.5 m Underground lifting height
17.5m×2.5t(4 fall)
35mX2t(2 fall)
70m×1t(1 fall)
Loading Chart
Dimensions
TECHNICAL DATA
GALLERY
Inquiry

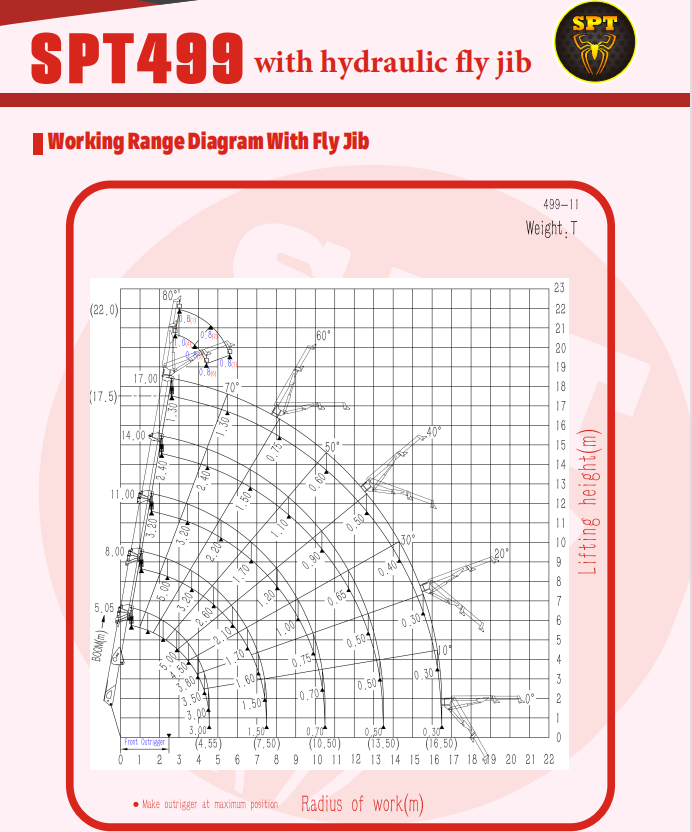

Loading Chart
 SPT499

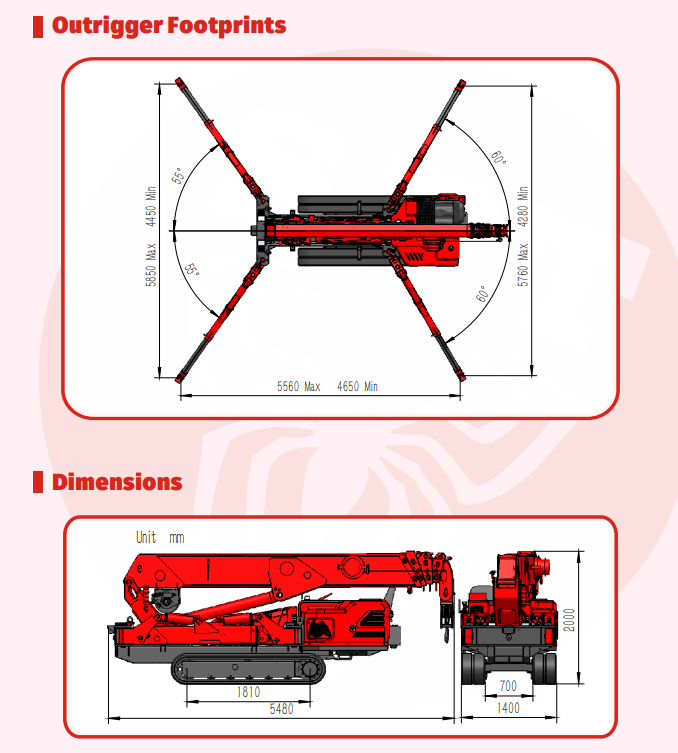

Dimensions

SPT499
TECHNICAL DATA
|

Model

SPT499

Capacity

5.0t×3.0m

Working radius

20.5m

Ground lifting height

22.0m

Underground lifting height

17.5m×2.5t(4 fall)  35mX2t(2 fall)  70m×1t(1 fall)

Winch device

Hook speed

0-14m/min (4 fall)



Rope type

Φ10mm×90m

Telescopic system

Boom form

5 section boom, hexagonal box construction



Boom length/Time

5.05m-17.00m/120sec

Up and downs

Boom angle/Time

0-80°/80sec

Slew system

Slew angle/Speed

0-360°(continuous)/120sec

Outrigger

Outrigger active form

Manual+Hydraulic



Maximum extended dimensions (mm)

5560(Length)X5850(Front)X5760(Back)

Traction system

Walking way

Hydraulic motor drive、2 speed



Walking speed

0-2.0km/ h



Grade ability

20°(36%)



Ground length×width

1810mm×350 mm



Ground pressure

51kpa(0.52 kgf / cm²)

Electric motor

Voltage

AC380V(Optional)



Power/Speed

7.5kw/1440 min-1



Sound level

Rated speed ≤78dB(A) (1m)

Diesel engine

Model

V1505 (KUBOTA)



Type/Displacement

4 cylinder water cooled/1.498L



Rated output

18.5kw/2300 min-1



Starting method

Electric



Operating temperature

-5°C~40°C



Fuel/Volume

Diesel/40L



Battery capacity

12v 60AH



Specific fuel consumption

264g/kW-h



Sound Level

Rated speed ≤84dB(A)  (1m)



Applied regulation/Altitude

EPA-Tier4,EC stage V/1200m

Operate system



Type of operation (crane, walk, leg、accelerator)

Wireless remote control and Dual axis joystick controller



Operating characteristic

Full proportional control and Proportional joystick control

Dimension

Length×Width×Height

5480mm×1400mm×2000mm

Weight



6450kg
