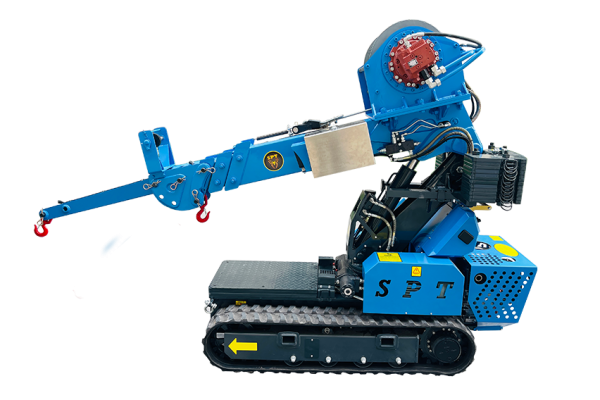

SG80

Pick and Carry Crane

Features
Max. Loading Capacity
800kg x1.2m
Working radius
3.0m x 400kg
Ground lifting height
4.2m x 600kg
Underground lifting height
145m x 800kg
Loading Chart
Dimensions
TECHNICAL DATA
GALLERY
Inquiry

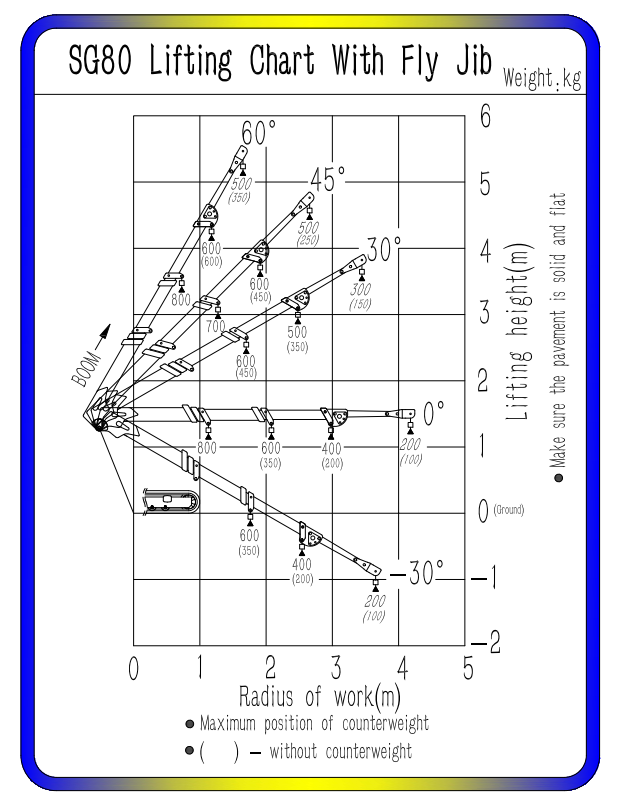

Loading Chart
 SG80 pick and carry crane

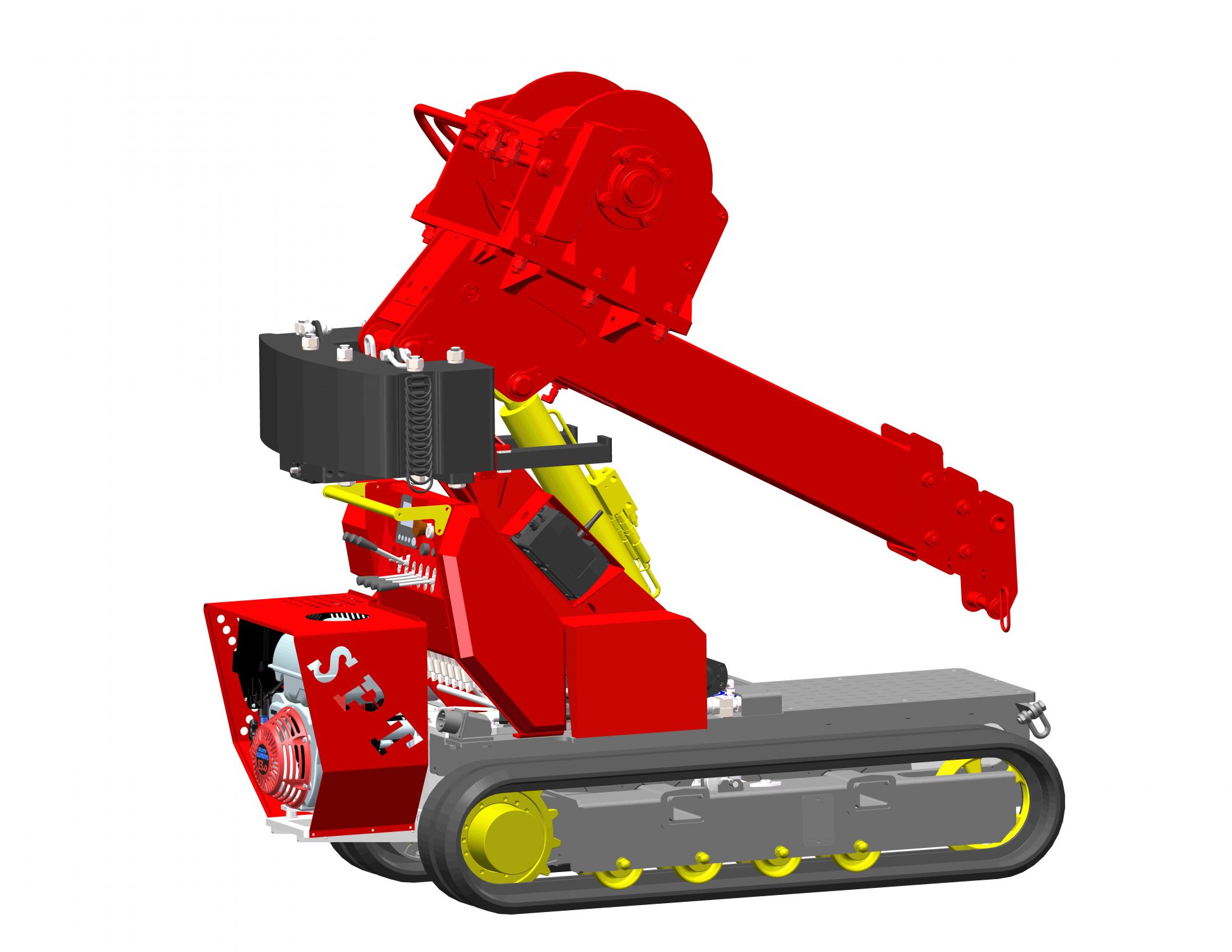

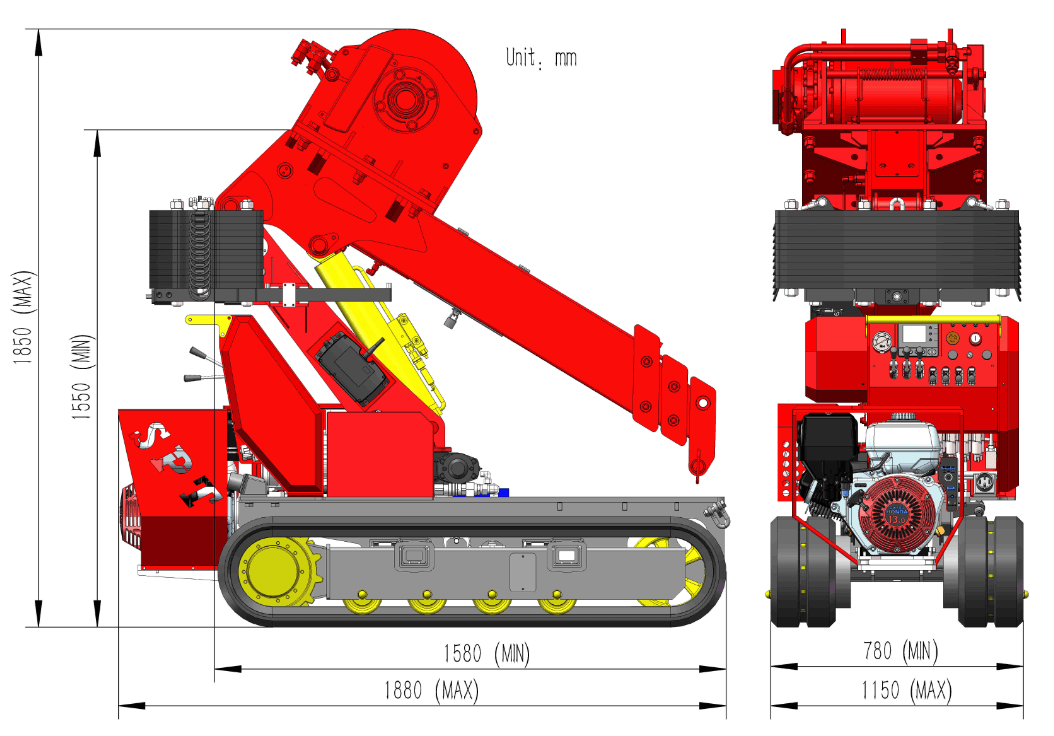

Dimensions
 SG80 pick and carry crane

SG80 pick and carry crane

TECHNICAL DATA

Model

SG80

Max Capacity

800kgX1.2m

Working radius

3.0mx400kg      4.2mx200kg(Fly jib)

Ground lifting height

4.2mX600kg      5.0mx500kg(Fly jib)

Underground lifting height

145mX800kg

Winch device

Hook speed

0-15m/min

Rope type

Φ10mm×150m

Telescopic system

Boom form

3 section boom, quadrilateral box construction

Boom length/Time

1.65m-3.5m/15sec

Up and downs

Boom angle/Time

-30°- 60°/12sec

Slew system

Slew angle/Speed

-25°- 25°/16sec

Traction system

Walking way

Hydraulic motor drive、2 speed

Walking speed

0-1.2km/h

Grade ability

15°

Ground length×width

1225mm×200 mm

Ground pressure

23kpa (0.235kgf/cm²) / 39kpa(0.395kgf/cm²)

Electric motor

Voltage

AC380V (optional)

Power/Speed

3kw/1440 min-1

Sound level

Rated speed ≤75dB(A) (1m)





Gasoline engine





Model

GX390 (HONDA)

Type/Displacement

single cylinder air cooling/0.389L

Rated output

6.6kw/3600 min-1

Starting method

Electric



Operating temperature

-10°C~40°C

Fuel/Volume

Gasoline /6L

Battery capacity

12v 45AH

Specific fuel consumption

0.3L/kW-h

Sound Level

Rated speed ≤98dB(A)  (7m)

Applied regulation/Altitude

China 3 , EU stage V/1200m

Operate system



Type of operation

Wireless remote control and manual operation

Operating characteristic

Full proportional control and linkage control

Dimension

Length×Width×Height(Min)

1880mm×780mm×1550mm

Length×Width×Height(Max)

1880mm×1150mm×1850mm

Weight

Minimum state

1120kg(Excluding ballast and optional)

Maximum state

1945kg

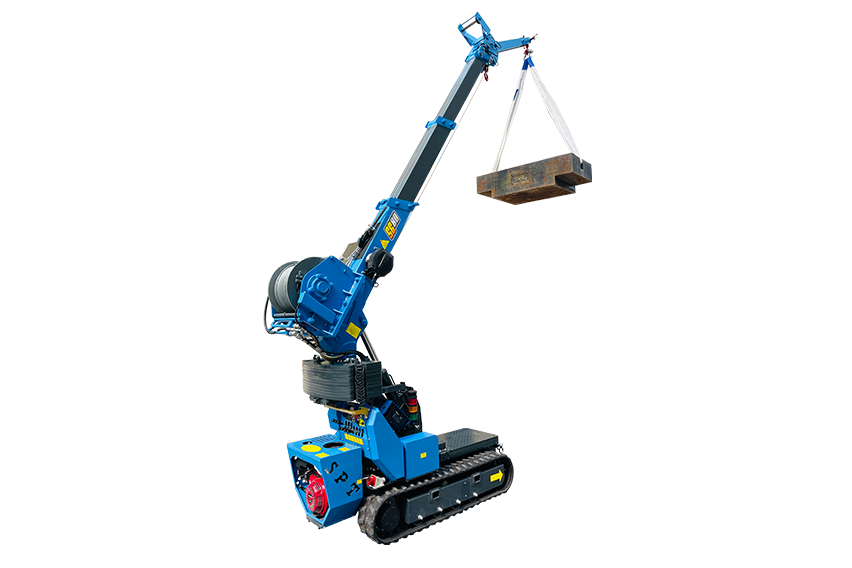

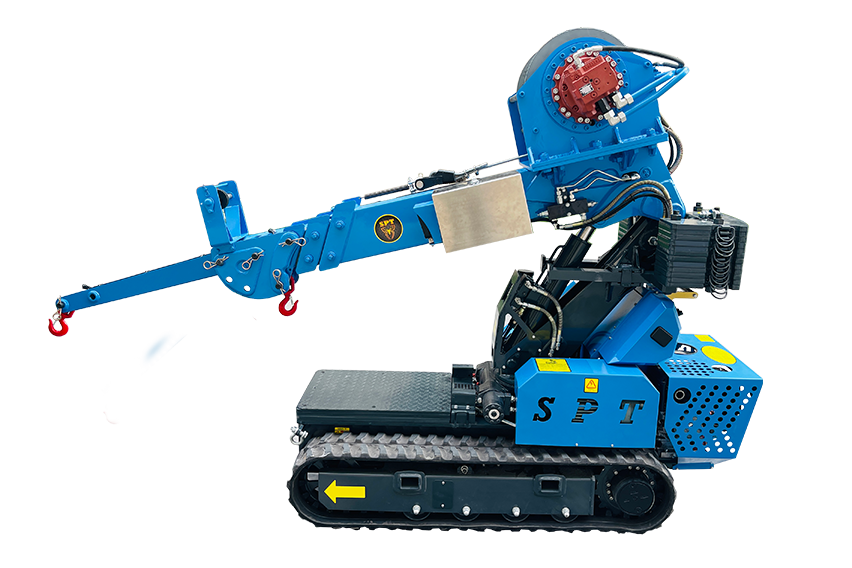

Gallery
