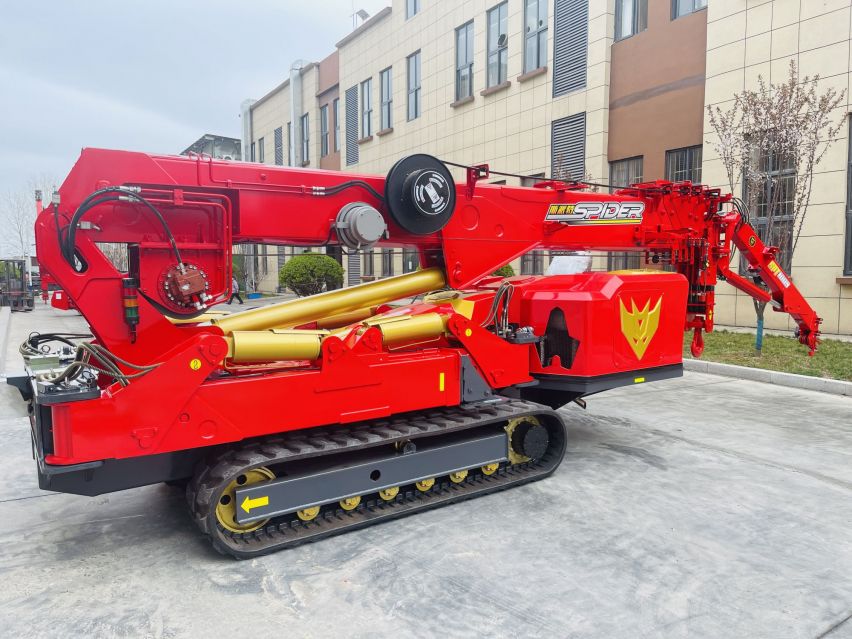

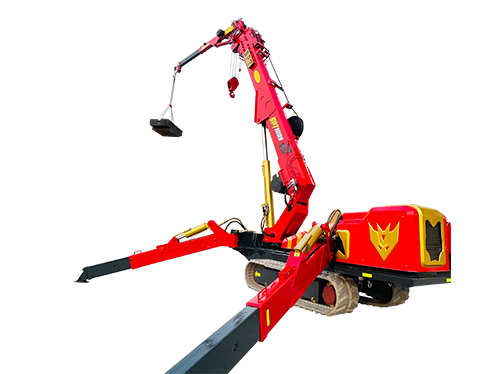

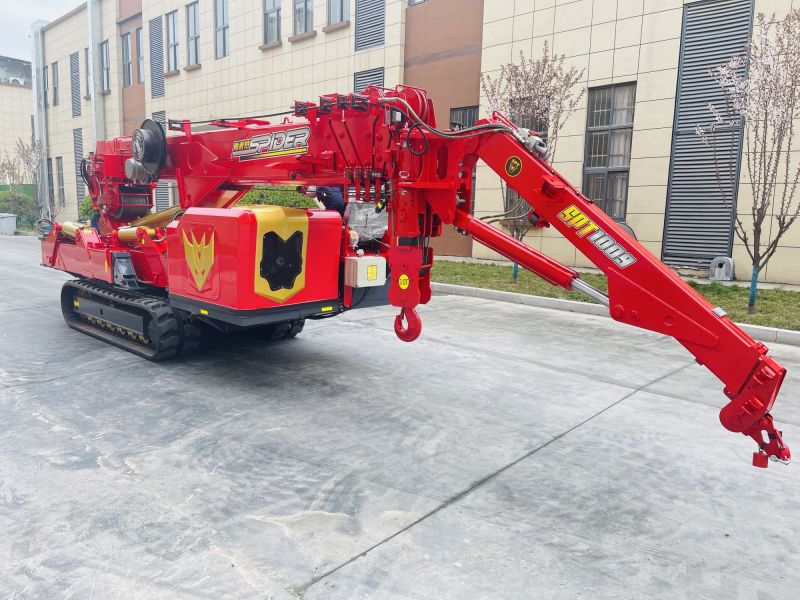

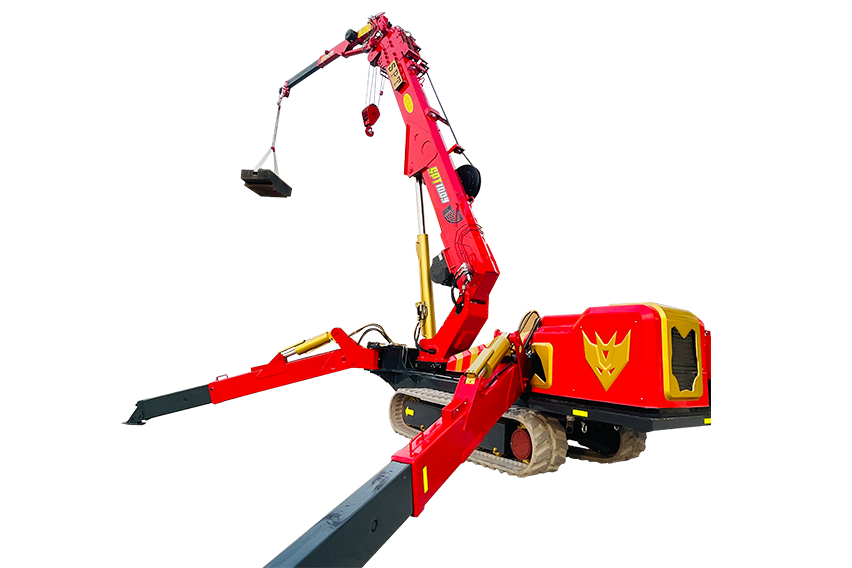

SPT1009 with hydraulic jib

Spider Crane

Features
Max Loading Capacity
10.0t×2.5m
Working radius
23.0 m
Ground lifting height
25.0 m
Underground lifting height
20m-6 fall
30m-4 fall
62m-2 fall
125m-1 fall
Loading Chart
Dimensions
TECHNICAL DATA
GALLERY
Inquiry

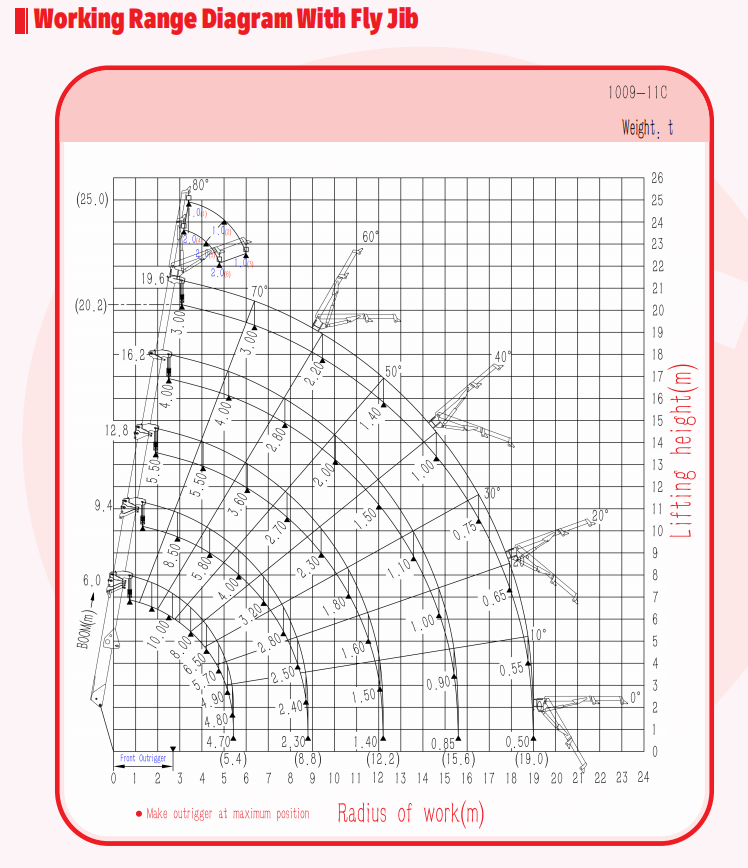

Loading Chart
 SPT1009

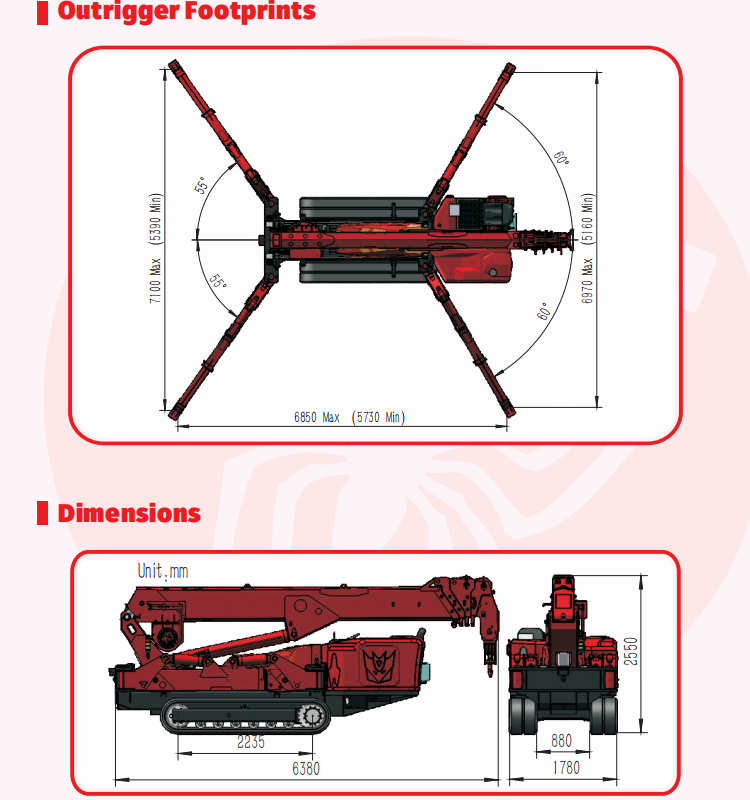

Dimensions
 SPT1009
TECHNICAL DATA
|

Model

SPT1009

Capacity

10.0t×2.5m

Working radius

23.0m

Ground lifting height

25.0m

Underground lifting height

20m×4.7t (6 fall)  30m×4.7t (4 fall)

62m×3.2t (2 fall) 125m×1.5t (1 fall)

Winch device

Hook speed

0-12m/min (6 fall) 0-18m/min (4 fall)

Rope type

Φ10mm×150m

Telescopic system

Boom form

5 section boom, hexagonal box construction

Boom length/Time

6.0m-19.6m/130sec

Up and downs

Boom angle/Time

0-80°/80sec

Slew system

Slew angle/Speed

0-360°(continuous)/120sec

Outrigger

Outrigger active form

Manual+Hydraulic

Maximum extended dimensions (mm)

6850(Length)X7100(Front)X6970(Back)

Traction system

Walking way

Hydraulic motor drive、2 speed

Walking speed

0-2.0km/ h

Grade ability

23°(42%)

Ground length×width

2235mm×400 mm

Ground pressure

67kpa(0.68 kgf/cm²)

Electric motor

Voltage

AC380V(Optional)

Power/Speed

15kw/1440 min-1

Sound level

Rated speed ≤78dB(A) (1m)





Diesel engine





Model

4TNV88C (YANMAR)

Type/Displacement

4 cylinder water cooled/2.19L

Rated output

29.1kw/2400 min-1

Starting method

Electric

Operating temperature

-5°C~40°C

Fuel/Volume

Diesel/60L

Battery capacity

12v 190AH

Specific fuel consumption

239g/kW-h

Sound Level

Rated speed ≤92dB(A)  (1m)

Applied regulation/Altitude

EPA-Tier4,EC stage V/1200m

Operate system



Type of operation (crane, walk, outrigger,accelerator)

Wireless remote control and Dual axis joystick controller

Operating characteristic

Full proportional control and Proportional joystick control

Dimension

Length×Width×Height

6380mm×1780mm×2550mm

Weight



12100kg
