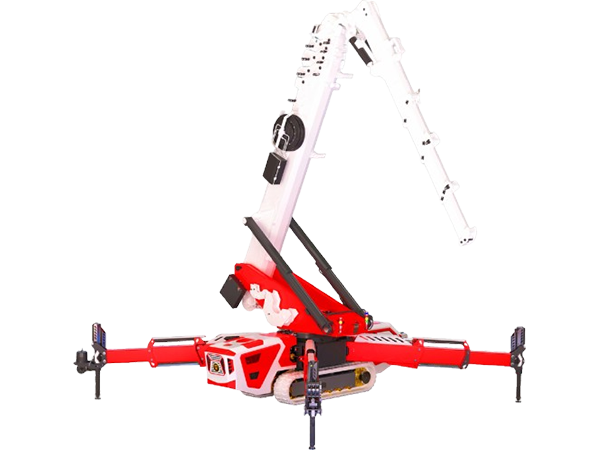

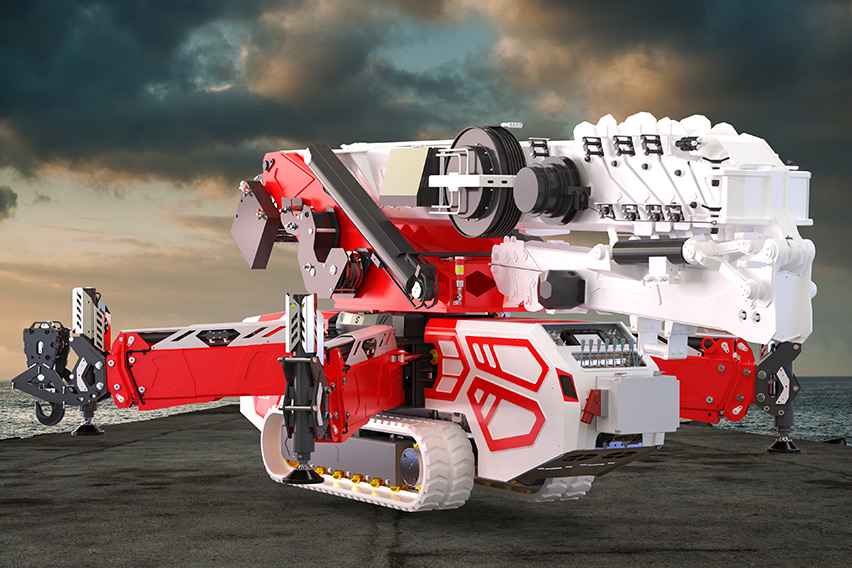

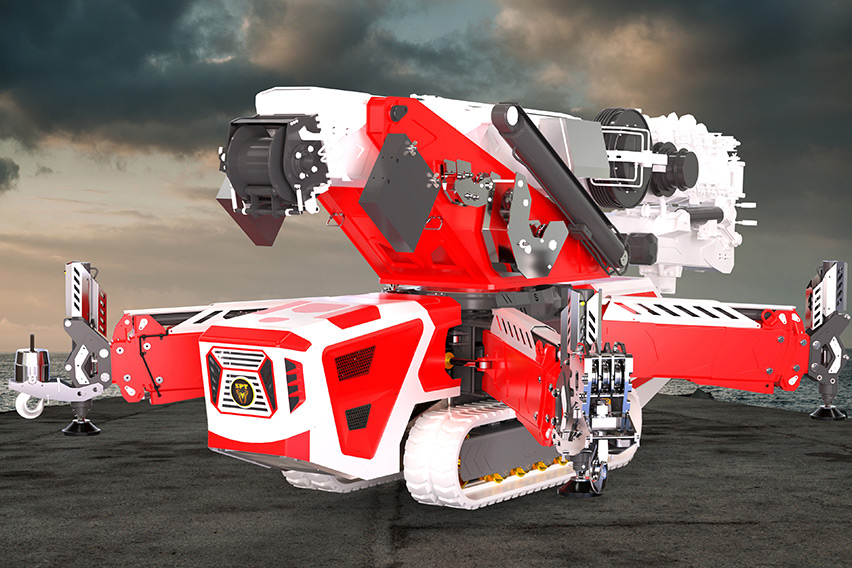

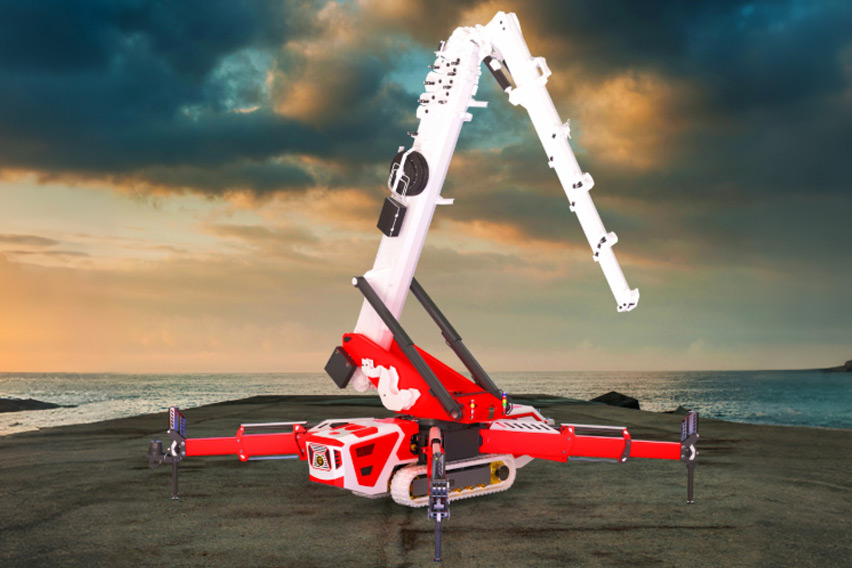

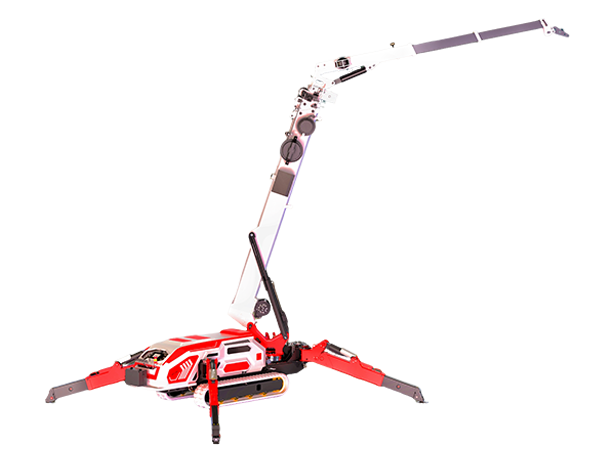

Model

S11

Capacity

5.0t×3m

Working radius

14.5mX0.4t

Ground lifting height

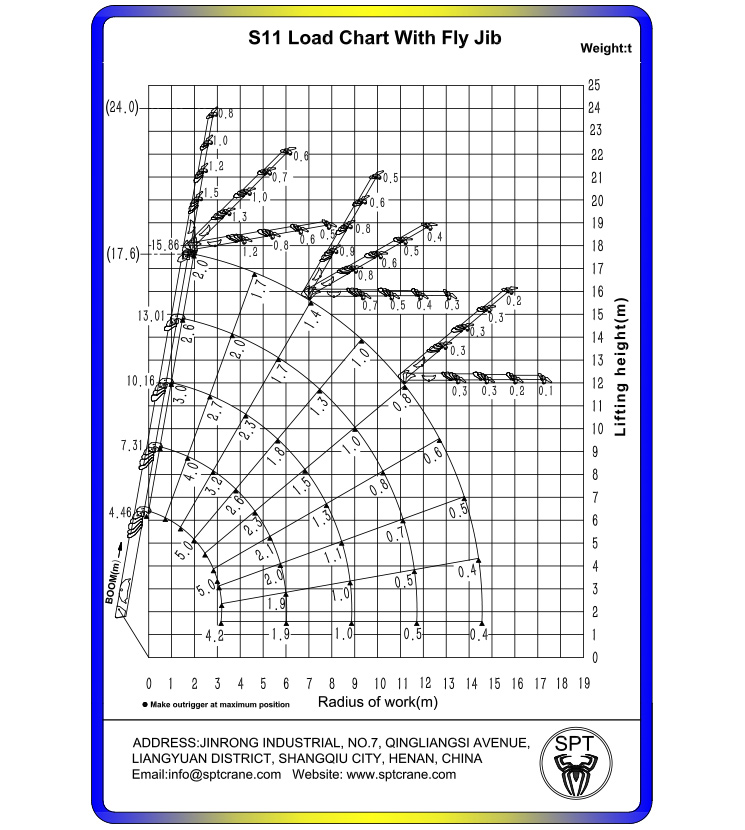

17.6m×2.0t / 24m×0.8t (with fly jib）

Underground lifting height

10m—4 fall  20m—2 fall  40m—1 fall

Winch device

Hook speed

0-8m/min (4 fall）

Rope type

Φ10mm×90m

Telescopic system

Boom form

5 section boom, hexagonal box construction

Boom length/Time

4.3m-15.8m / 35sec

Up and downs

Boom angle/Time

0-80°/30sec

Slew system

Slew angle/ Speed

0-360°（continuous）/60sec

Outrigger

Outrigger active form

Automatic + Hydraulic

Maximum extended dimensions /mm

4750（Length）×4750（Wide）

Traction system

Walking way

Hydraulic motor drive、2 speed

Walking speed

0-2.0km/ h

Grade ability

20°(36%)

Ground length × width

1800mm×300mm

Ground pressure

65kPa（0.66 kg f / cm²）

Electric motor

Voltage

AC380V（Optional）

Power/Speed

7.5kW/1440 min-1

Sound level

Rated speed ≤78dB(A) （1m）

Diesel engine

Model

V1505 (Kubota)

Type / Displacement

4 cylinder water cooled / 1.498L

Rated output

18.5kW/ 2300 min-1

Starting method

Electric

Operating temperature

-5°C~40°C

Fuel/ Volume

Diesel/40L

Battery capacity

12v 60AH

Specific fuel consumption

254g/kW-h

Sound Level

Rated speed ≤90dB(A)  (1m)

Applied regulation / Altitude

EC stage V , EPA-Tier4 / 1200

Operate system

Type of operation (crane, walk, outrigger）

Wireless remote control and manual operation

Operating characteristic

Full proportional control and linkage control

Dimension

L×W×H (With fly jib)

5280mm×1080mm×2070mm

Weight

With fly jib

7000kg

Standard equipment

Diesel engine and motor (Dual power)、Manual emergency and wireless proportional remote (Dual operation mode) 、Intelligent display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger position detector device、Outrigger off ground alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Voice prompt、Walking/Outrigger/Boom three-mode interlock system、Data records

Optional device

Searcher hook 、Outrigger Pads、Man basket
