Model

SPT399

Capacity

2.98t×2.5m

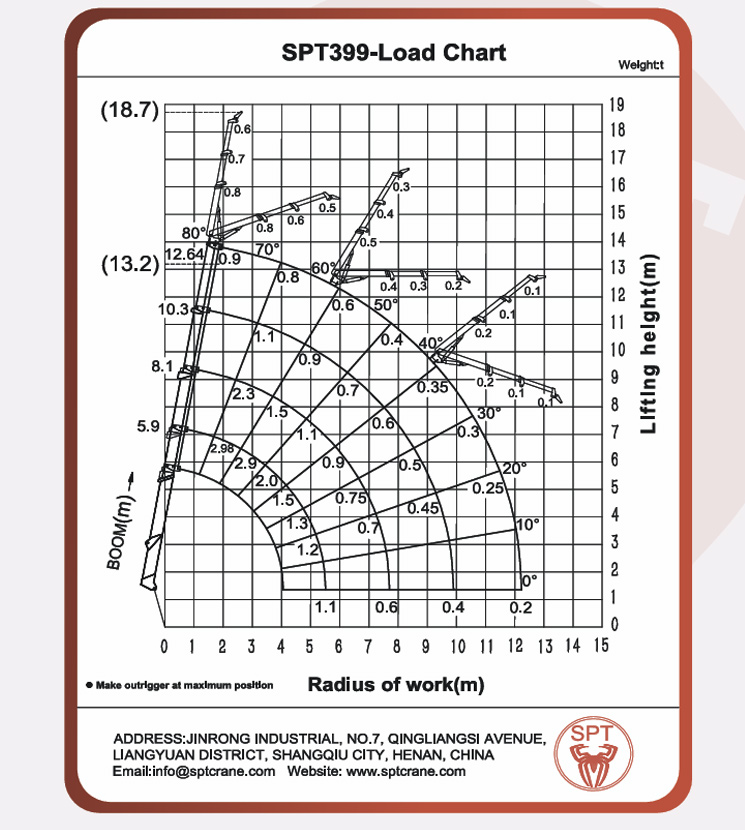

Working radius (max)

12.2m×0.2t

Ground lifting height (max)

13.2mx0.9t  / 18.7x0.6t (with fly jib)

Underground lifting height (max)

17.5m-4 fall   35m-2 fall   70m-1 fall

Winch device

Hook speed

0-14m/min (4 fall)

Rope type

Φ8mm×80m

Telescopic system

Boom form

4 section boom, hexagonal box construction

Boom length/Time

4.44m-12.64m/90sec (adjustable)

Up and downs

Boom angle/Time

0-80°/80sec (adjustable)

Slew system

Slew angle/Speed

0-360° (continuous) /120sec (adjustable)

Outrigger

Outrigger active form

Manual + Hydraulic

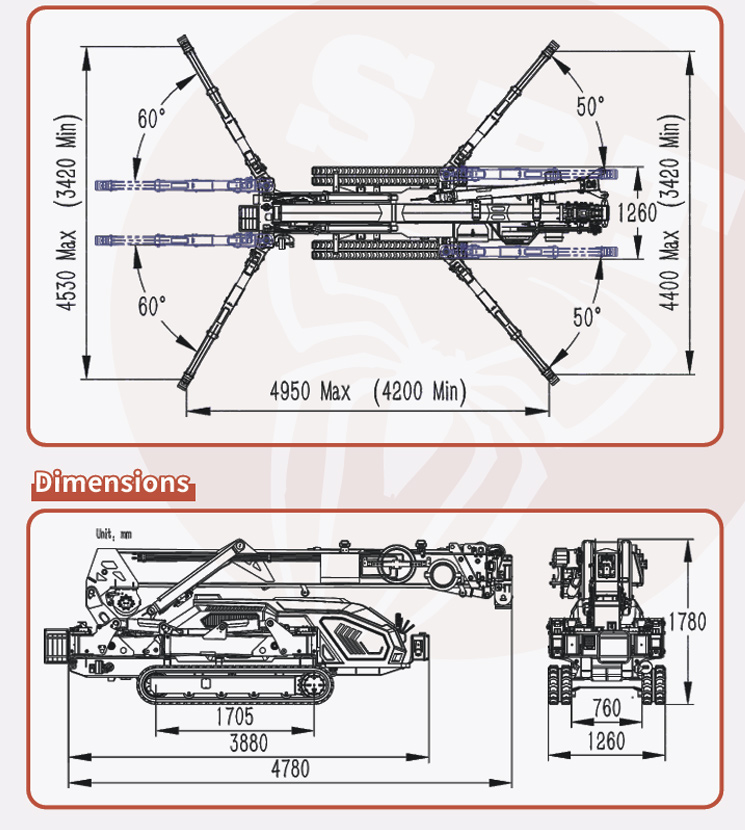

Maximum extention dimensions (mm)

4950 (Length)X4530 (Front)X4400 (Back)

Traction system

Walking way

Hydraulic motor drive、2 speed

Walking speed

0-2.0km/ h

Grade ability

20°(36%)

Ground length×width

1705mm×250 mm

Ground pressure

53kPa(0.54 kgf / cm²)

Electric motor

Voltage

AC 380-400V (three phase) / 50Hz

Power/Speed

5.5kW/1440 min-1

Sound level

Rated speed ≤80dB(A) (1m)

Diesel engine

Model

3TNV80F (YANMAR)

Type/Displacement

3 cylinder, direct injection, water cooled/1. 267L

Rated output

15.2kW/2500 min-1

Starting method

Electric

Operating temperature

-5°C~40°C

Fuel/Volume

Diesel/40L

Battery capacity

12v 60Ah

Specific fuel consumption

276g/kW-h

Sound Level

Rated speed ≤84dB(A)  (1m)

Applied regulation/Altitude

EPA-Tier4，EC stage V/1200m

Operate system

Type of operation

Wireless remote and Manual operation

Operating characteristic

Proportional control and composite action

Dimension

Length×Width×Height

4780mm×1260mm×1780mm

Weight

Crane + Hydraulic fly jib

4200kg+350kg

Standard equipment

Diesel engine and motor (Dual power), Manual and wireless proportional remote (Dual operation mode) , Intelligent display screen, Moment limiter, Over hoist alarm and automatic stop device, Three-winding alarm and automatic stop device, Automatic hook stow, Outrigger position detector device, Outrigger off ground alarm and automatic stop device, Slinging rope detachment protector, EMS switch, Three color lamp, Remote control lamp, Voice prompt, Walking/Outrigger/Boom three-mode interlock system, Data records, Black rubber track, Searcher hook, Single fall hook, Stainless steel toolbox, Hydraulic fly jib

Optional equipment

Glass suction cup 、White rubber track 、Outrigger Pads、Man basket
