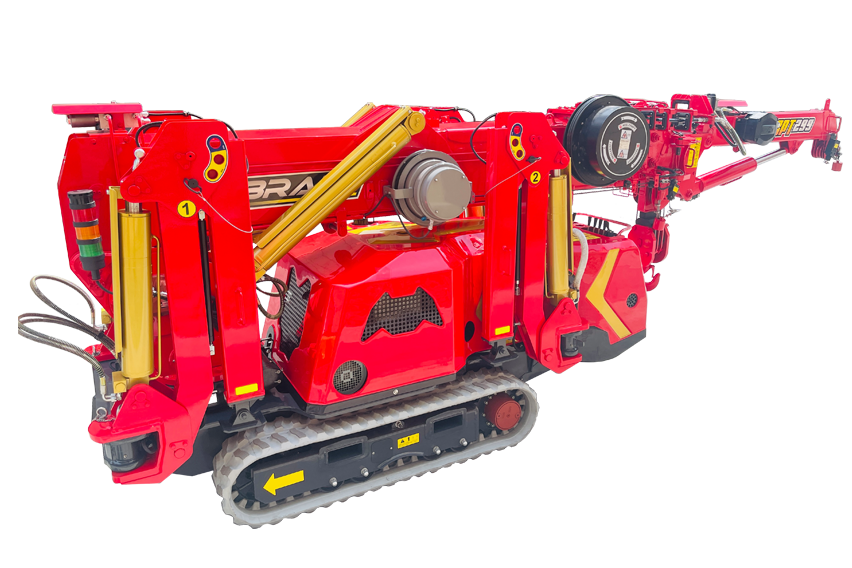

SPT 299 with 2-section Hydraulic Jib

Spider Crane

Features
Max Loading Capacity
2.95t×1.4 m
Working radius
11.5 m
Ground lifting height
12.5 m
Underground lifting height
10m-4 fall
20m-2 fall
40m-1 fall
Loading Chart
Dimensions
TECHNICAL DATA
GALLERY
Inquiry

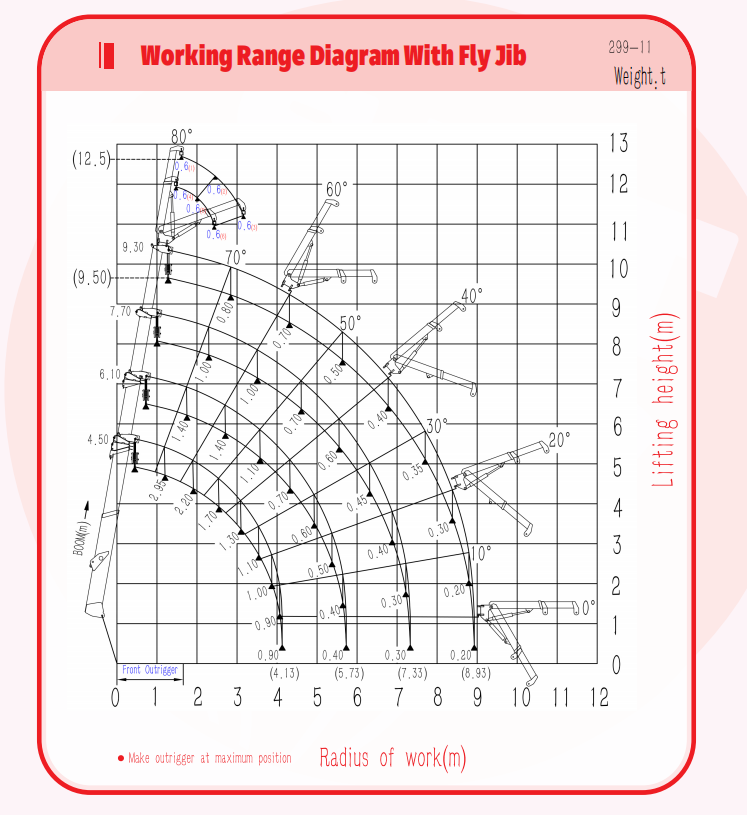

Loading Chart
SPT299

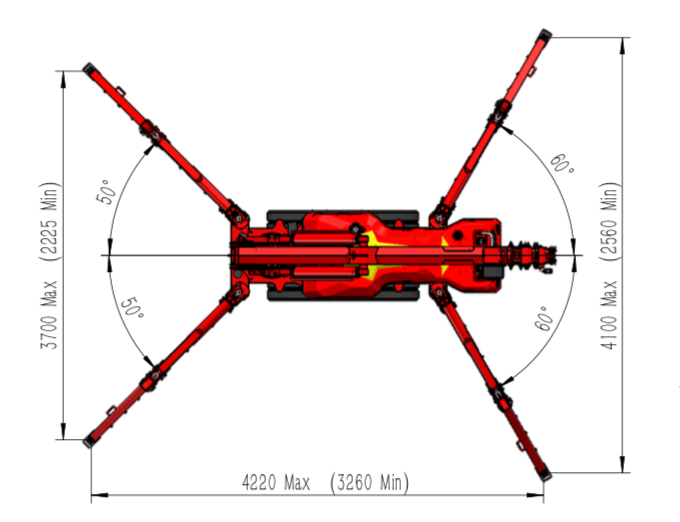

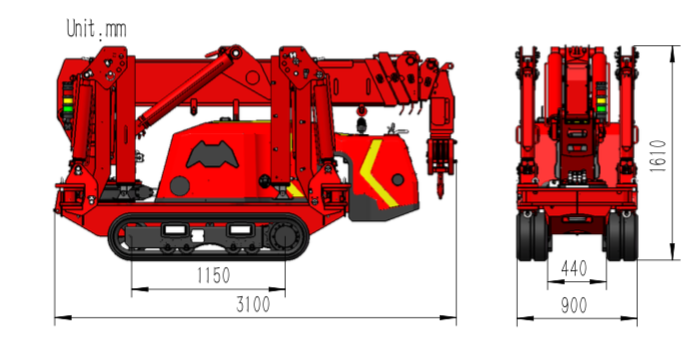

Dimensions
SPT299
SPT299
TECHNICAL DATA

Model

SPT299 with hydraulic jib

Capacity

2.95t×1.4m

Working radius

11.5m

Ground lifting height

12.5

Underground lifting height

10m×1t(4 fall)  20m×1t(2 fall)

40m×0.74t(1 fall)

Winch device

Hook speed

0-8m/min (4 fall)



Rope type

Φ8mm×50m

Telescopic system

Boom form

4 section boom, hexagonal box construction



Boom length/Time

3.1m-9.2m/18sec

Up and downs

Boom angle/Time

0-80°/18sec

Slew system

Slew angle/Speed

0-360°(continuous)/45sec

Outrigger

Outrigger active form

Manual+Hydraulic



Maximum extended dimensions (mm)

4220(Length)X3700(Front)X4100(Back)

Traction system

Walking way

Hydraulic motor drive、2 speed



Walking speed

0-2.0km/h



Grade ability

20°(36%)



Ground length×width

1150mm×230 mm



Ground pressure

53kpa(0.54 kgf/cm²)

Electric motor

Voltage

AC380V(Optional)



Power/Speed

4kw/1440 min-1



Sound level

Rated speed ≤75dB(A) (1m)





Diesel engine





Model

3TNV70 (YANMAR)



Type/Displacement

3 cylinder water cooled/0.854L



Rated output

10.3kw/2200 min-1



Starting method

Electric





Operating temperature

-5°C~40°C



Fuel/Volume

Diesel/18L



Battery capacity

12v 45AH



Specific fuel consumption

274g/kW-h



Sound Level

Rated speed ≤82.5dB(A)  (1m)



Applied regulation/Altitude

EPA-Tier4,EC stage V/1200m

Operate system



Type of operation (crane, walk, leg、accelerator)

Wireless remote control and manual operation



Operating characteristic

Full proportional control and linkage control

Dimension

Length×Width×Height

3500mm×900mm×1610mm

Weight

2700kg(without jib)

2860kg(with hydaulic jib)

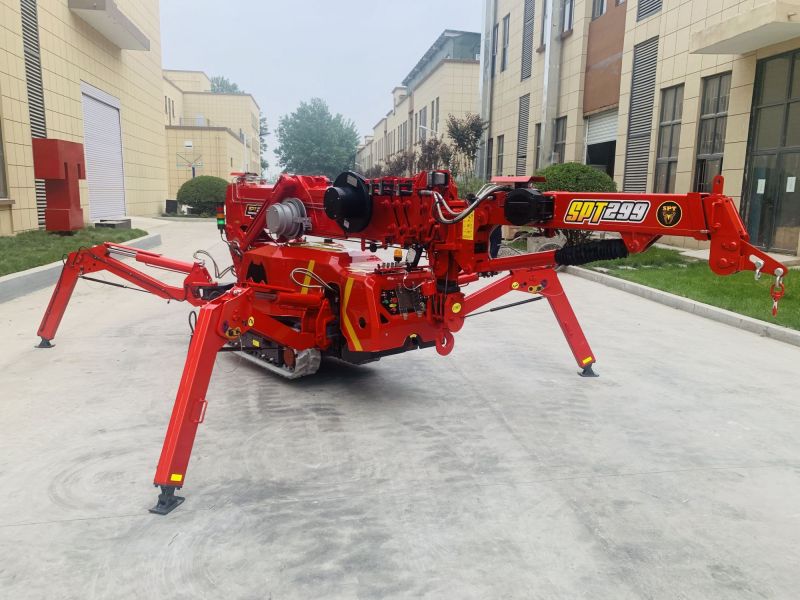

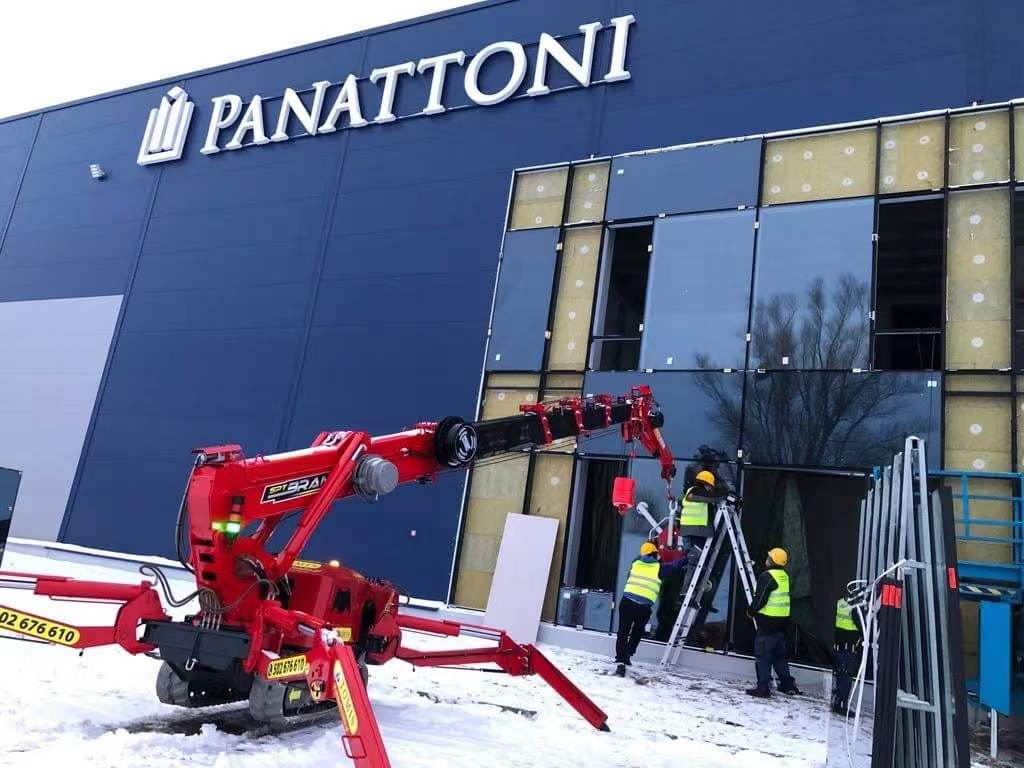

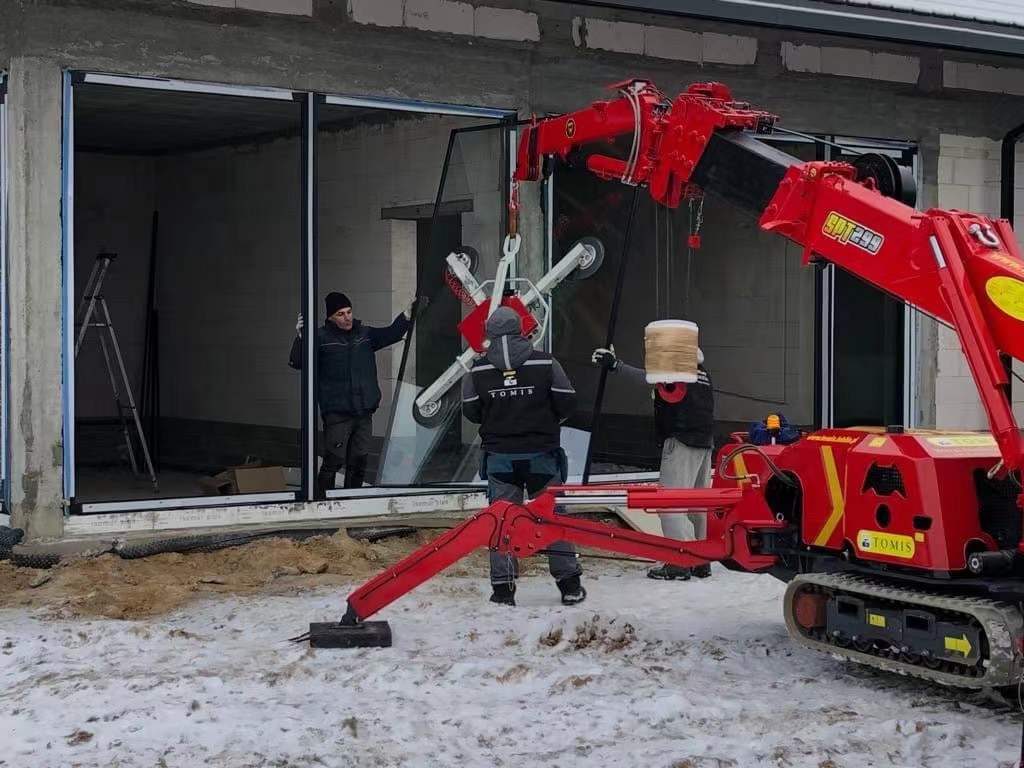

Gallery
