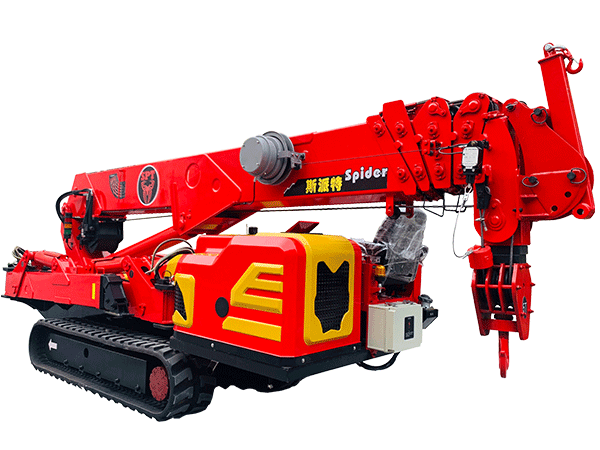

SPT 499

Spider Crane

Features
Max Loading Capacity
5.0Ton×2.2M
Working radius
16.14M×0.21Ton
Ground lifting height
17.2Mx1.15Ton
Underground lifting height
17.5M×2.5Ton(4 fall)
35M×2Ton(2 fall)
70M×1Ton(1 fall)
Loading Chart
Dimensions
TECHNICAL DATA

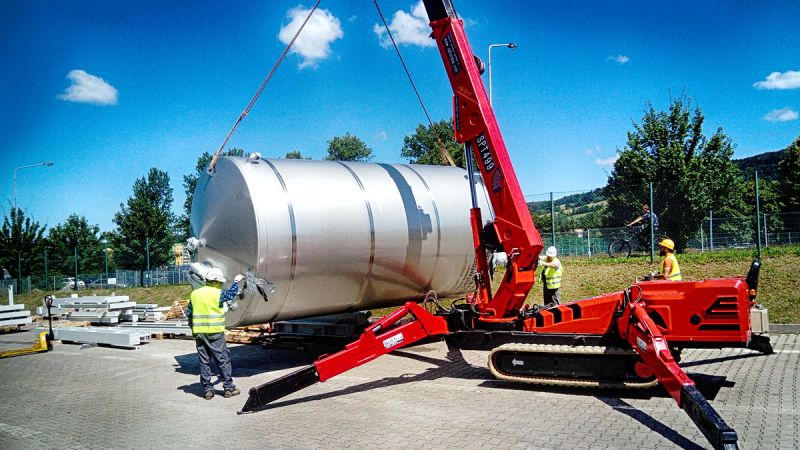

GALLERY
Inquiry
Loading Chart
SPT499 with Fly Jib
SPT499




SPT499 without Fly Jib

SPT499

SPT Models

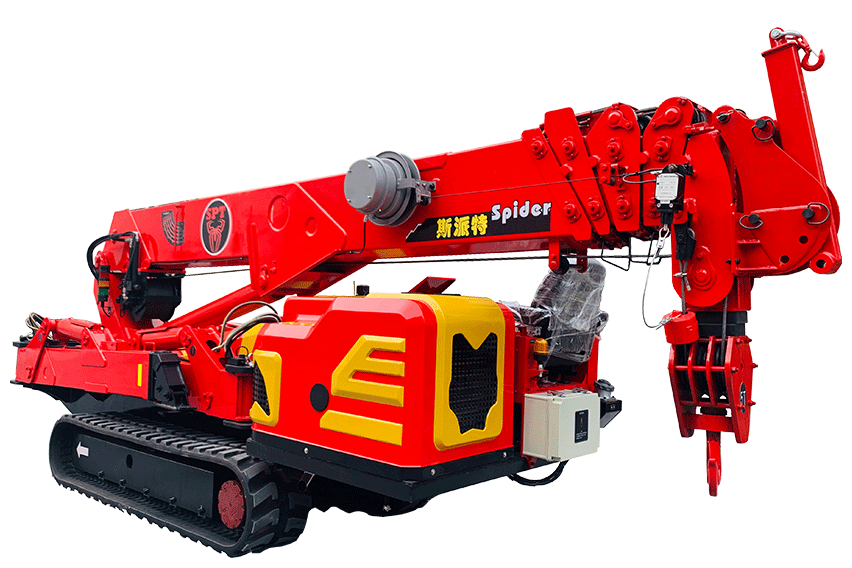

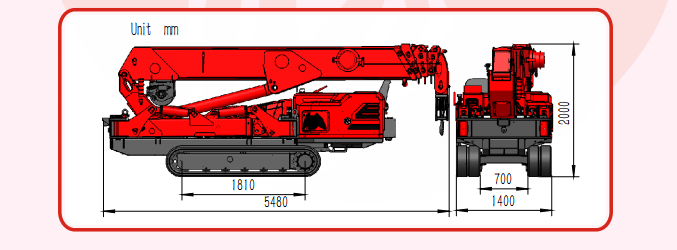

Dimensions
TECHNICAL DATA
Specifications

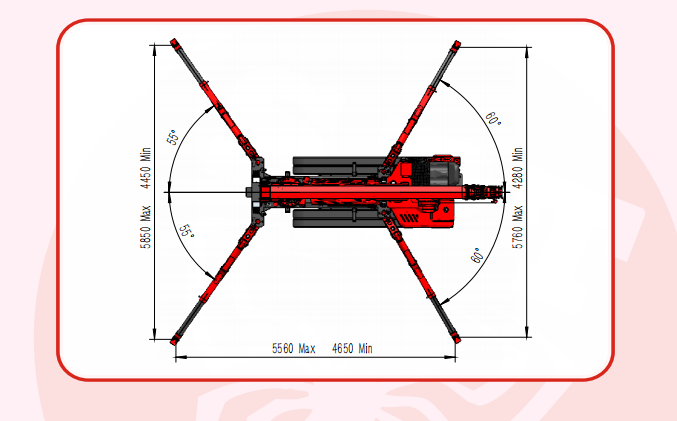

Total rated load Outriggers at Maximum position(4fall)
Total rated load Outriggers at any other position(4fall)
Model SPT499
Capacity 5.0t×2.2m
Working radius 16.14m×0.21t
Ground lifting height 17.2Mx1.15t
Underground lifting height 17.5mX2.5t(4 fall)  35mX2t(2 fall)  70mX1t(1 fall)



Winch device Hook speed 0-14m/min (4 fall)
Rope type

Φ10mm×80m(Minimum breaking force 90.1KN 1960N/mm²)

Telescopic system Boom form 5 section boom, hexagonal box construction
Boom length/Time 4.64m-16.64m/45sec
Up and downs Boom angle/Time 0-80°/18sec
Slew system Slew angle/Speed 0-360°(continuous)/30sec
Outrigger Outrigger active form Manual+Hydraulic
Maximum extended dimensions (mm)



5880(Length)X5700(Front)X5950(Back)
Traction system Walking way Hydraulic motor drive、2 speed
Walking speed 0-3km/ h
Grade ability 20°(36%)



Ground length×width 1810mm×350 mm
Ground pressure 44kpa(0.45 kgf / cm²)
Electric motor Voltage AC380V(Optional)
Power/Speed 7.5kw/1440 min-1
Sound level Rated speed ≤60dB(A) (1m)





Diesel engine





Model 3TNV80F (YANMAR)



Type/Displacement 3 cylinder water cooled/1.266L
Rated output 14.6kw/2400 min-1
Starting method Electric



Operating temperature

-5°C~40°C

Fuel/Volume Diesel/40L
Battery capacity 12v 45AH
Specific fuel consumption 272g/kW-h
Sound Level Rated speed ≤83.5dB(A)  (1m)



Applied regulation EPA-Tier4
Operate system



Type of operation (crane, walk, leg、accelerator)

Wireless remote control and Dual axis joystick controller

Operating characteristic Full proportional control and Proportional joystick control
Dimension Length×Width×Height 4950mm×1400mm×1980mm
Weight

(Without optional equipment)

5750kg
Standard equipment Diesel engine and motor (Dual power)、Proportional joystick control and wireless proportional remote (Dual operation mode) 、Intelligent display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger position detector device、Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Voice prompt、Walking/Outrigger/Boom three-mode interlock system、Data records
Optional equipment Searcher hook(0.7t) 、Fly jib(0.8t)、Single fall hook、Outrigger Pads、Man basket




More Pictures     https://www.sptcrane.com/company-picture/
More Videos       https://www.sptcrane.com/videos/
4.64/7.64 boom

 10.64 boom

13.64 boom 16.64 boom
Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



<2.20 5.00 <3.5 3.10 <4.00 2.25 <5.00 1.15
2.50 4.20 4.00 2.58 4.50 1.93 5.50 0.98
3.00 3.55 4.50 2.25 5.00 1.73 6.00 0.91
3.50 3.10 5.00 1.98 6.00 1.40 7.00 0.76
4.00 2.60 6.00 1.68 7.00 1.18 8.00 0.65
5.00 2.20 7.00 1.38 8.00 1.03 9.00 0.60
6.00 1.72 8.00 1.13 9.00 0.93 10.00 0.55
7.00 1.55 9.00 0.88 10.00 0.83 11.00 0.49
7.14 1.45 10.14 0.58 11.00 0.69 12.00 0.44









12.00 0.53 13.00 0.38









13.14 0.43 14.00 0.32













15.00 0.26













16.14 0.21
4.64/7.64 boom

 10.64 boom

13.64 boom 16.64 boom
Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



<2.20 5.00 <3.50 3.10



<4.00 2.25 <5.00 1.15
2.50 4.20 4.00 2.58 4.50 1.83 5.50 0.98
3.00 3.55 4.50 1.95 5.00 1.63 6.00 0.88
3.50 3.10 5.00 1.68 6.00 1.18 7.00 0.73
4.00 2.60 6.00 1.18 7.00 0.73 8.00 0.53
5.00 1.68 7.00 0.88 8.00 0.68 9.00 0.45
6.00 1.18 8.00 0.73 9.00 0.55 10.00 0.42
7.00 0.93 9.00 0.58 10.00 0.43 11.00 0.37
7.14 0.78 10.14 0.40 11.00 0.38 12.00 0.33









12.00 0.35 13.00 0.28









13.14 0.31 14.00 0.24















15.00 0.19













16.14 0.15
