SPT 199

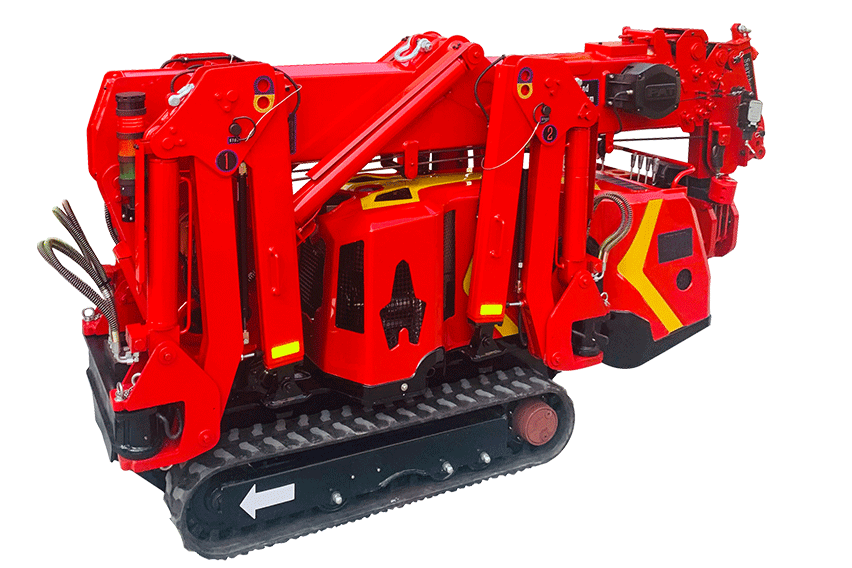

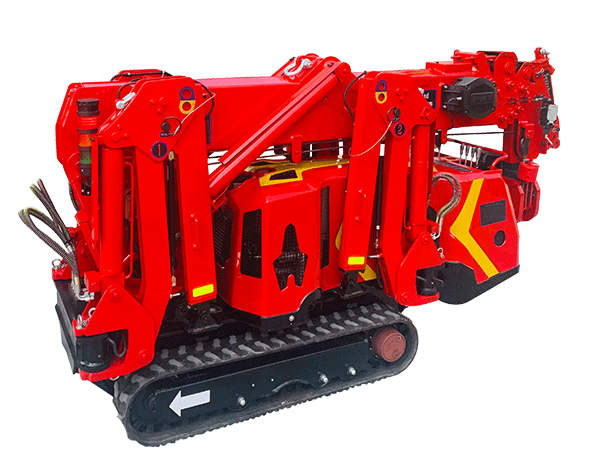

Spider Crane

Features
Max Loading Capacity
1.95Ton ×1.75M
Working radius
5.86M×0.20Ton
Ground lifting height
6.65M×0.55Ton
Underground lifting height
10MX1Ton(4 fall)
20MX1Ton(2 fall)
40MX0.74Ton(1 fall)
Features
Dimensions
TECHNICAL DATA

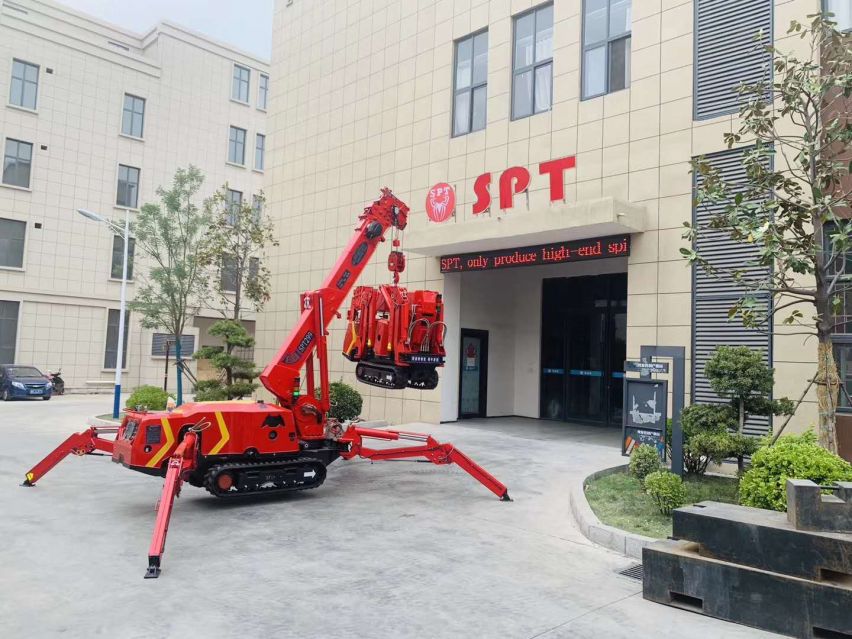

GALLERY
Inquiry
Features
spt spider cranes

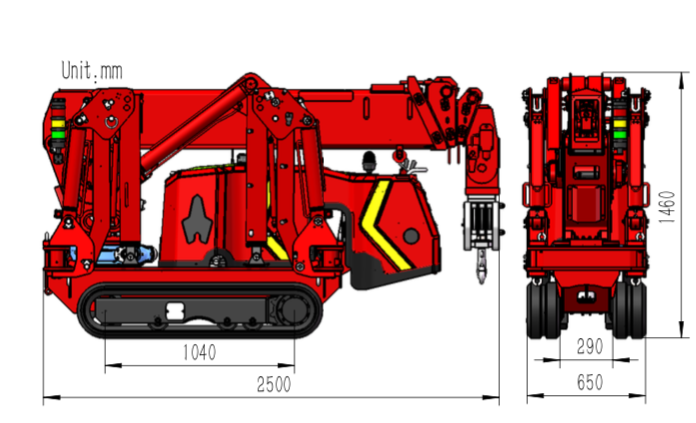

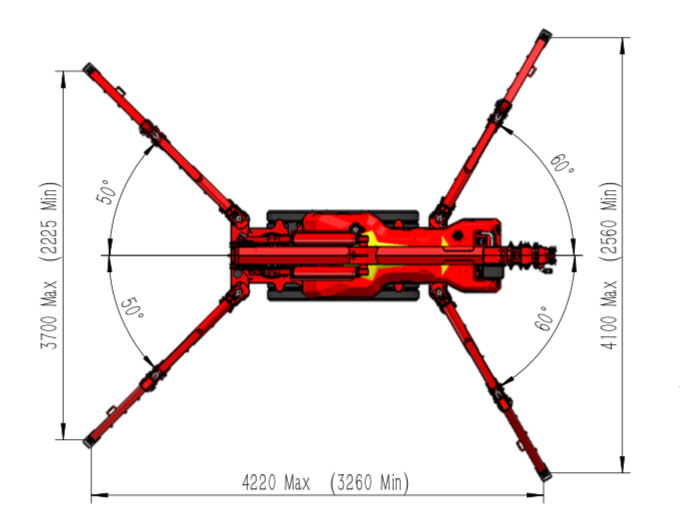

Dimensions
TECHNICAL DATA
Specifications
Total rated load Outriggers at Maximum position(4fall)
Total rated load Outriggers at any other position(4fall)
Model SPT199
Capacity 1.95t×1.75m
Working radius 5.86m×0.20t
Ground lifting height 6.65mX0.55t
Underground lifting height 10mX1t(4 fall) 20mX1t(2 fall) 40mX0.74t(1 fall)



Winch device Hook speed 0-8m/min (4 fall)
Rope type

Φ8mm×50m(Minimum breaking force 60.6KN 2160N/mm²)

Telescopic system Boom form 5 section boom, hexagonal box construction
Boom length/Time 1.99m-6.20m/30sec
Up and downs Boom angle/Time 0-70°/20sec
Slew system Slew angle/Speed 0-360°(continuous)/60sec
Outrigger Outrigger active form Manual+Hydraulic
Maximum extended dimensions (mm)



3350(Length)X2900(Front)X3080(Back)
Traction system Walking way Hydraulic motor drive
Walking speed 0-3.0km/h
Grade ability 20°(36%)



Ground length×width 1045mm×180 mm
Ground pressure 44kpa(0.45 kgf/cm²)
Electric motor Voltage AC380V(Optional)
Power/Speed 4kw
Sound level Rated speed ≤60dB(A) (1m)





Battery



Model KD440 (KOHLER)



Type/Displacement Single cylinder air cooled/0.441L
Rated output 8kw/3600 min-1
Starting method Electric



Operating temperature

-5°C~40°C

Fuel/Volume Diesel/5L
Battery capacity 12v 45AH
Specific fuel consumption 240g/kW-h
Sound Level Rated speed ≤80dB(A)  (7m)



Applied regulation EPA-Tier4
Operate system



Type of operation (crane, walk, leg、accelerator) Wireless remote control and manual operation
Operating characteristic Full proportional control and linkage control
Dimension Length×Width×Height 2200mm×600mm×1600mm
Weight

(Without optional equipment)

1700kg
Standard equipment Manual and wireless proportional remote (Dual operation mode) 、Display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger working condition、Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Walking/Outrigger/Boom three-mode interlock system、Data records
Optional equipment Searcher hook(0.3t) 、Fly jib(0.5t)、Single fall hook、Outrigger Pads、Man basket
1.99/3.06 boom

 4.12 boom

5.16 boom 6.20 boom
Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



<1.30 1.95 <1.50 1.40 <2.00 0.80 <2.50 0.55
1.50 1.95 2.00 1.35 2.50 0.75 3.00 0.50
1.75 1.95 2.50 1.30 3.00 0.70 6666 3.50 0.48
2.00 1.80 3.00 1.10 3.50 0.68 4.00 0.45
2.50 1.50 3.50 0.85 4.00 0.60 4.50 505 0.40
2.72 1.40 3.78 0.75 4.50 0.45 5.00 0.38









4.82 82 0.40 5.50 0.25













5.86 0.20
1.99/3.06 boom

 4.12 boom

5.16 boom 6.20 boom
Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



Working radius(m)



Total rated load(t)



<1.30 1.20 <1.50 0.40 <2.00 0.25 <2.50 0.20
1.50 1.20 2.00 0.38 2.50 0.22 3.00 0.18
1.75 0.80 2.50 0.35 3.00 0.19 3.50 0.16
2.00 0.60 3.00 0.23 3.50 0.17 4.00 0.13
2.50 0.40 3.50 0.18 4.00 0.15 4.50 505 0.10
2.72 0.35 3.78 0.15 4.50 0.12 5.00 0.08

.







4.82 82 0.08 5.50 0.06













5.86 0.05
